Electrical Machine LabPMDC Machine Lab
Product Description
A PMDC (Permanent Magnet DC motor) is a kind of DC motor that includes a permanent magnet rather than field winding to form the magnetic field necessary for the DC motor operation. The PMDC motor is one of the most preferred motor for the electric vehicle application due to its traction characteristics such as high starting torque, high power density and good efficiency.
PMDC Machine Lab is an important and exclusively designed product for electrical laboratories. PMDCMachine is an important part of Electrical Engineering Syllabus considering upgraded technologies. This productplays a vital role in letting the students have a basic knowledge about the operating principle of PMDC machine. Itprovides complete learning contents to enhance practical knowledge and explains students the fundamentalconcepts of PMDC Machine.
-
Electrical Machine LabPower Supply 3 X 0-12V, 40A DC
Product Description
3 X 0-12V, 40A DC Power Supply is a versatile product used in electrical and electronic engineering laboratories for the purpose of conducting experiments over DC circuits. This unit provides three sets of output channels, each of 12V DC output with built-in cooling fan and protection schemes. Digital voltmeter and ammeter are being used for better resolution and accuracy.
-
Electrical Machine LabScott Connection Trainer
Product Description
Scott Connection Demonstrator is a vital training system for the Electrical Laboratories. It provides comprehensive learning of Three Phase to Two Phase Conversion in a very simple manner. It helps to study and analyze the operation of Teaser Transformer and Main Transformer.
Students can per for m stand alone operations and observe the two phase step down waveforms on oscilloscope, which will have 90° phase displacement with each other
-
Digital ElectronicsShift Registers Trainer
Product Description
Shift Registers Trainer is a compact, ready to use digital electronics experiment board. This training product has been designed specifically for students to study all the four types of 3-bit and 4-bit shift registers on a single board and verify their truth tables.
A shift register is capable of shifting its binary information either to the left or right direction. The temporary memory storage and data shifting characteristics of shift registers make them extremely valuable for most digital electronics systems. machine has built-in clock source, logic high-low input facility and LEDs for visual indication of input-output logic states. Besides this, a +5V DC adaptor is also provided for power supply.
-
Electrical Machine LabShunt Motor Series Generator Lab
Product Description
Shunt Motor Series Generator Lab is an elite training system for the Electrical laboratories. This product help students to understand basic operations of DC Series Generator. It can aptly be used for performing various experiments like Working of Generator, Analysis of Magnetic Characteristic and also efficiency at any desired load. Separate terminals of armature and field windings are provided on top of the machine. Starter and rheostat terminals are provided on the panel so that these can be connected externally to the circuit. The product thus provides complete understanding of experiments with Shunt Motor and Series Generator.
-
Electrical Machine LabSingle Phase Induction Motor Lab
Product Description
Single Phase Induction Motor Lab is an exclusive and attractive training system for the electrical laboratories. It provides complete learning concepts of Single Phase Capacitor Start Induction Motor. Separate terminals have been provided for main winding, starting winding and capacitor so that student can understand the significance of individual windings along with the role of capacitor in the motor in a simple manner.
It includes phenomenon of excitation, running and reversing of the motor. Students can calculate the equivalent circuit parameters and the power factor of the motor. It demonstrates the relation between speed and torque, known as load characteristic or speed-torque characteristic of the motor.
All connections and appearance of panel are designed in a simple manner. Students can make connections by themselves.
-
Electrical Machine LabSingle Phase Transformer Lab
Product Description
Single Phase Transformer Lab is an elite training system for the Electrical laboratories. The product
helps you to get fully acquainted with the basic concepts and functioning of a Single Phase Transformer.
The product is represented in such an easy way that each test can be studied differently in proper sequence. The
Lab practically expertises you in exercises like Polarity, Turns Ratio, Transformation Ratio, Iron Loss, Copper Loss, Efficiency etc. The vast scope of learning makes the subject easily and completely understandable. -
Digital ElectronicsSOP & POS Implementation Trainer
Product Description
SOP & POS Implementation Trainer is a compact, ready to use digital electronics experiment board. It is useful for students to get a practical insight into the implementation of different canonical forms. The various applications of a canonical forms are representing any Boolean function as a product of sum or sum of product.
Trainer has built in clock source, logic high-low input facility and LEDs for visual indication of input-output states. Besides this, a +5V DC adaptor is also provided for power supply.
-
Electrical Machine LabSumpners Test of Two Single Phase Transformer
Product Description
Sumpner’s Test of Single Phase Transformer is a very exclusive and important product designed for students of Electrical Engineering to explain the basic concepts of Sumpner’s test. With this trainer, students can learn about the significance of conduction of the heat run test with two single phase transformers and correspondingly can deter mine the efficiency and voltage regulation. Additionally one can also learn the phenomenon of polarity.
The product helps the students to get fully acquainted with the basic concepts and functioning of the tests conducted on a single phase transformers. The product is represented in such an easy way that each test can be studied in proper sequence.
-
Basic Electronic ProductsT and π Network Trainer
Product Description
T and π Network Trainer has been exclusively and attractive designed to demonstrate the significance of image and characteristic impedance of T and π network. It can be used as a stand alone unit with inbuilt DC power supply. Various scope of learning makes the subject understanding complete. This trainer includes not only the experimental calculation of image and characteristic impedance but also verifies it by comparing the theoretical values under T and π networks in a sequential manner. With this, students can learn about importance of Symmetrical and Unsymmetrical networks.
-
Electrical Machine LabThree Phase Induction Motor Trainer
Product Description
Three Phase Induction Motor Lab is an adaptable training system for the Electrical laboratories. The product helps you to get fully acquainted with the basic concepts and functioning of a Three Phase squirrel cage Induction Motor. The trainer practically expertises you in exercises like Running and Reversing, No Load T est, Block Rotor Test, Slip Measurement, Load Test etc. The vast scope of learning makes the subject completely understandable.
-

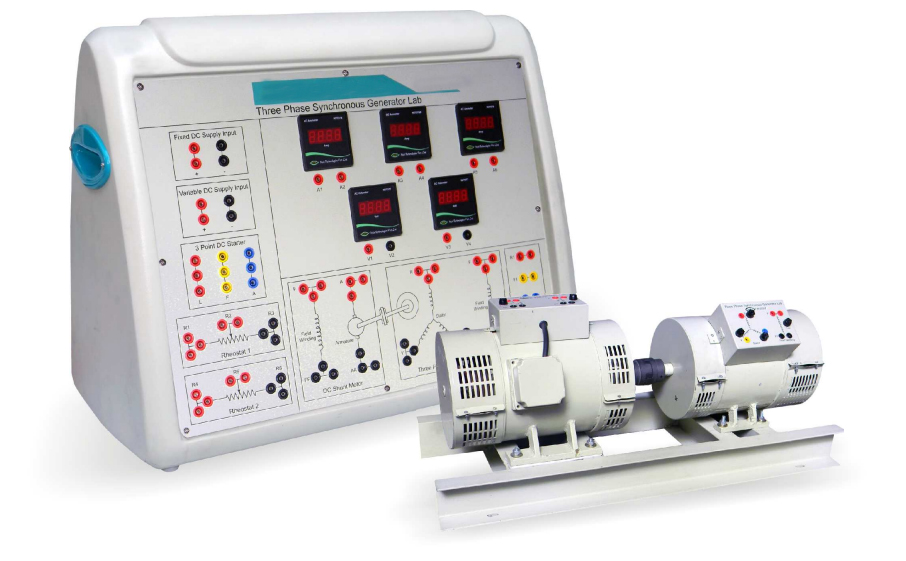

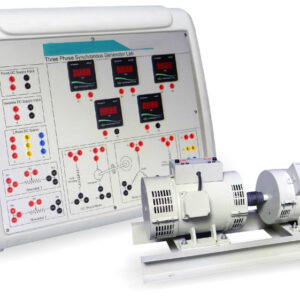

Electrical Machine LabThree Phase Synchronous Generator Lab
Product Description
Three Phase Synchronous Generator Lab is an exclusive & important product designed to provide comprehensive learning about fundamental concepts and operating principles of Three Phase Synchronous Generator. Synchronous Generators are the primary source of electrical energy. These are used to convert mechanical power derived from (steam, gas, or hydraulic) turbine to ac electric power. The product provides hands-on experiments like Open Circuit Characteristic of Synchronous Generator and study of the relation between field cur rent and armature voltage. The product is very easy to use. All protection circuits are in built so there is very less chance of fault or danger to user. The varied scope of learning makes the subject’s understanding complete.
