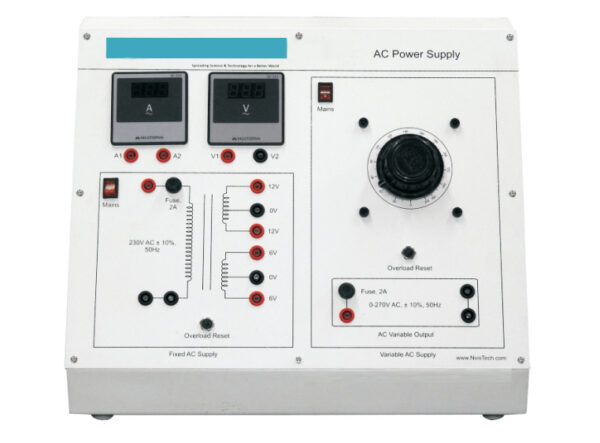

AC Power Supply

AC Power Supply

Product Description

AC Power Supply is a versatile product mainly used in electrical and electronic engineering laboratories for the purpose of conducting experiments over AC circuits. This unit provides 0-220V Variable AC output and 6V-0-6V & 12V-0-12V step down AC Voltage with adequate protection schemes. Digital voltmeter and ammeter are being used for better resolution and accuracy.

Category:

Product Features

  • Stand alone operation
  • Equipped with single phase auto transformer for AC variable supply
  • Digital controller based measuring instruments for better accuracy
  • Exclusive and rugged design unit
  • Over Current and short circuit protections.
  • Supply indication lamps

Technical Specifications
Input Mains : 230V AC ±10%, 50Hz
AC Variable Output
Voltage : 0 to 220V ±10%
Current : 2A
AC Step Down Output
Voltage : 6V – 0 – 6V ±10%,
12V – 0 – 12V ± 10%
Current : 2A
Digital Meters
AC Voltmeter (for AC variable output) : 300V
AC Ammeter : 10A
Single Phase Switches : 2 nos. (2Amp)
