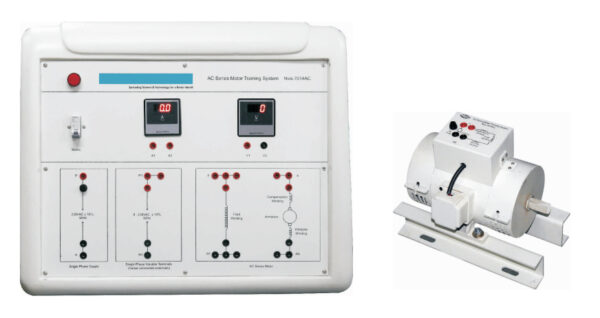

AC Series Motor Training System

AC Series Motor Training System

Product Description

AC Series Motor Training System is an exclusive and attractive training system for electrical laboratories. It provides complete learning contents and students can easily understand the fundamental concepts of AC Series Motor. AC Series Motor is majorly used in applications where high speed and low torque is required such as in table-fans, hairdryers, and kitchen appliances.

Category:
Product Features
  • Stand alone operation.
  • Control board consists of high grade FRP material to provide utmost safety to the users.
  • Standard BS terminals, patch cords for safety purpose.
  • High quality meters are used
  • Machine with Class ‘F’ insulation.
  • Terminals provided to use the optional devices externally.
  • Designed by considering all the safety standards.
  • Diagrammatic representation for the ease of connections.
  • Rich learning material.

Scope of Learning
• Study of AC Series Motor and its characteristic.



Technical Specifications
Mains Supply : Single Phase, 230V ±10%, 50Hz
Single Phase Machine
Type : AC Series Motor
Rating : 1HP
Voltage rating : 230VAC ± 10%
Rated speed : 1500RPM ± 10%
Insulation : Class ‘F’
Meters used
Digital Voltmeter : 500V
Digital Ammeter : 10A
MCB : 6A
