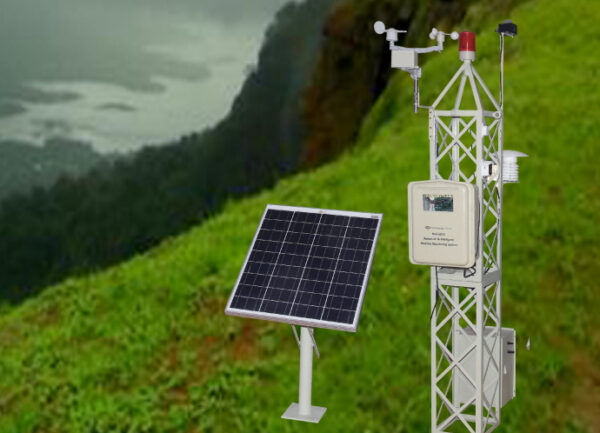

Overall this machine is a very versatile system, allowing users to examine data that is essential to their operations.
Product Features
-
- High Accuracy & Reliability
- Communication over GPRS
- Battery Charging from Solar Panel
- Real time Data Access on Web
- Low Maintenance
Technical Specification
Air Temperature | |
Operating Range | 0°C to100°C |
Resolution | 1°C |
Relative Humidity | |
Operating Range | 5% to 95%RH |
Resolution | 1% |
Solar Radiation sensor | |
Output | 0-2VDC |
Range | 0 to 2000W/m2 |
Spectral Response | 400 to 1100 nm |
Atmospheric Pressure Sensor | |
Detection Range | 15- 115kPa |
Response time | 5 Sec. |
Air Quality Sensor (PM2.5) | |
Detection Range | 10 – 500 ppm |
Response time | 5 Sec. |
Wind Speed Sensor | |
Speed | 0 to 20m/S |
Resolution | 1m/S |
Wind Direction Sensor | North, East, West, South, North-East, East-South, North-West, South-West |
Rainfall | Tipping bucket in mm |
UV Index Sensor | |
Response wavelength | 200nm-370nm |
Response time | 5 seconds |
Power Supply | |
Battery | Battery : 12V/40AH |
Solar Panel | 75W |
Wireless Transmission | GPRS Based |
Cloud Services | 1 Year |
