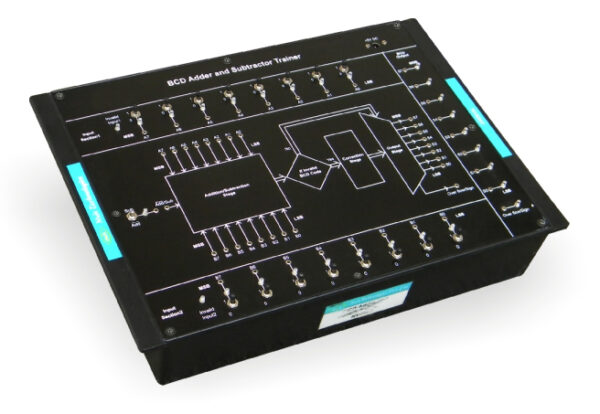

BCD Adder and Subtractor Trainer

BCD Adder and Subtractor Trainer

Product Description

BCD Adder and Subtractor Trainer is a compact, ready to use digital electronics experiment board. This product has been designed specifically for the students to study and understand the concept of BCD addition and subtraction processes.

Machine has logic high-low input switch facility, LEDs for visual indication and direct reading of the input-output logic states and carry status. It can be used as stand alone unit with +5V adaptor.

Category:

BCD Adder and Subtractor Trainer is an ideal platform to enhance education, training, skills & development amongs our young minds.

Product Features

  • Facilitates 1-bit to 8-bit BCD addition and subtraction modes
  • LEDs for visual indication of input-output logic states
  • Easy switching between addition and subtraction modes
  • Unique design
  • Online product tutorial
Scope of Learning
  • Study of 1-bit to 8-bit BCD addition
  • Study of 1-bit to 8-bit BCD subtraction

Technical Specifications

DC Power Supply : +5V DC
Logic levels
+5V : High (Logic 1)
0 V : Low (Logic 0)
LED Indication : LED will be ON for
logic high or ‘1’ state
and will be OFF for
logic low or ‘0’ state
Dimensions (mm) : W 260 x D 355 x H 125
