Product Description

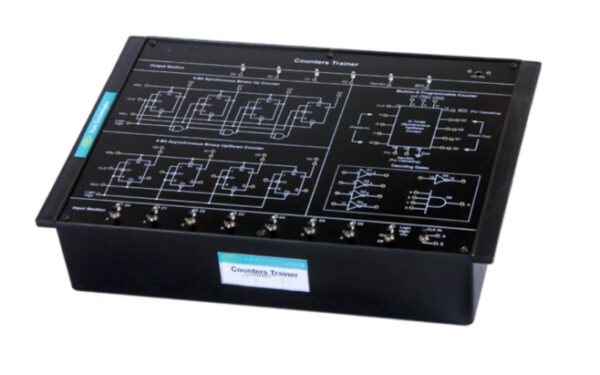

Counters Trainer is a compact, ready to use digital electronics experiment board. It is useful for students to get a practical insight into the working of counters. Counters are undoubtedly the most important part of any digital circuit. The various applications of a Counter are counting events or time periods, dividing frequency, addressing, and serving as memory units.

Machine  has a built in clock source, logic high-low input facility, LEDs for visual indication of input-output states. Besides this, a +5V DC adaptor is also provided for power supply.

Category:

Counters Trainer is an ideal platform to enhance education, training, skills & development amongs our young minds.

Product Features

  • Stand Alone system
  • Easy illustration of different types of counters
  • LEDs for visual indication of inputs and outputs status
  • SPDT switches for input logic selection e-Manual
  • e-Manual
Scope of Learning
  • Study of 4-bit synchronous binary up Counter
  • Study of 4-bit asynchronous binary up/down Counter
  • Verification of operation of IC 74LS190 as a modulo-N programmable Counter

Technical Specifications
DC Power Supply : +5V DC
Logic levels
+5V : High (Logic 1)
0V : Low (Logic 0)
LED Indication : LED will be ON for logic
high or ‘1’ state and will
be OFF for logic low or ‘0’
state
Dimensions (mm) : W 260 x D 355 x H125
