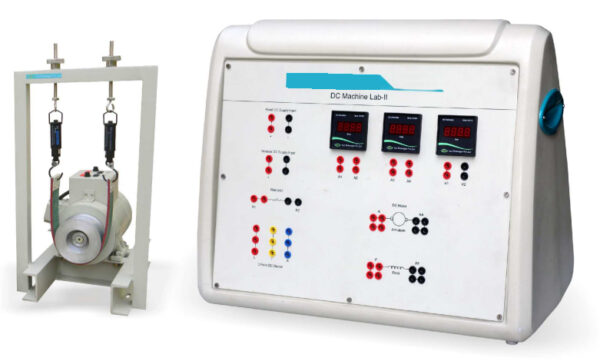

Product Features
- Machine with Mechanical Loading Arrangement
- Provided with Digital Tachometer
- Control board consist of high grade FRP material to provide utmost safety to the users
- Machine with Class “B” Insulation
- Heavy Duty Base/Channel
- Brake-Drum/Pulley with heat suppression facility
- Designed by considering all the safety standards
- Diagrammatic representation for the ease of connections
- Exclusive and Compact Design
- Online Product Tutorial
Scope of Learning
- Speed Control of DC Shunt Motor by Field Current and Armature Voltage Control
- Load Characteristics of DC Shunt Motor
- N-I Characteristics of DC Shunt Motor
- N-V Characteristics of DC Shunt Motor
- Study of self excited DC Shunt Motor
Technical Specifications
DC Machine
Type : Shunt
Rating : ½ HP (Also available with 1HP,
2HP and 3HP)
Voltage Rating : 220V ± 10% (please refer
specification on the motor)
Speed : 1500 rpm ± 7.5%
Insulation : Class ‘B’
Loading arrangement : Mechanical
Brake Drum/Pulley : Aluminum casted
Digital Meters used
DC Voltmeter : 300V
DC Ammeter : 5A (2 nos)
Digital Tachometer : 20,000 rpm
Optional ?DC Power Supply Nvis 725/Nvis 725A (for machines ?rated upto 2HP/3HP respectively) ?Rheostat, 2.8A, 220O
3 Point Starter
