Encoder and Decoder Trainer

Encoder and Decoder Trainer

Product Description

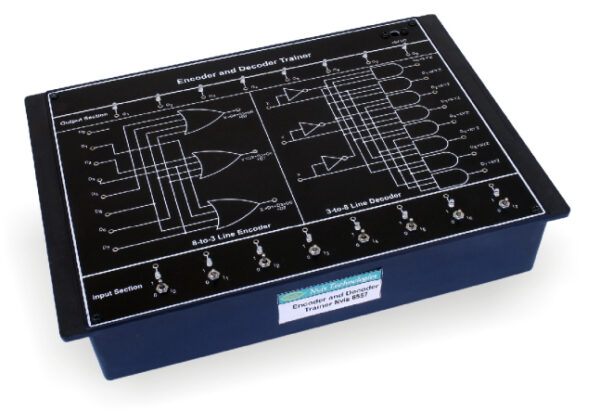

Encoder and Decoder Trainer has been designed specifically for the study of 8-to-3 Line Encoder and 3-to-8 Line Decoder. The Training board explains the phenomena which encodes 8 data lines to 3 lines and decodes 3 data lines to 8 lines. The board is absolutely self contained and requires no other apparatus.

Encoder and Decoder Trainer is an ideal platform to enhance education, training, skills & development amongs our young minds.

Category:

Product Features

  •  +5V SMPS Adaptor provided with the trainer for power supply
  •  Easy illustration of Encoder and Decoder
  •  LEDs for visual indication of inputs and outputs status
  •  SPDT switches for logic selection
  •  Good quality, reliable sockets are provided at appropriate places on board for connections
  •  Strongly supported by systematic operating instructions
  •  A low cost training system
Scope of Learning
  • Study and verification of the Truth Table of 8-to-3 Line Encoder.
  • Study and verification of the Truth Table of 3-to-8 Line Decoder.

Technical Specifications
Input : +5V DC
Logic levels
+5V : HIGH (Logic 1)
0V : LOW (Logic 0)
Dimensions (mm) : 240 W x 345 D x 10 H
Weight : 1kg. (approximate)
LED Indication : LED will be ON (glow) for 1
state and will be OFF for 0
state
