Experimentation with Maxwell's Bridge

Experimentation with Maxwell`s Bridge

Product Description

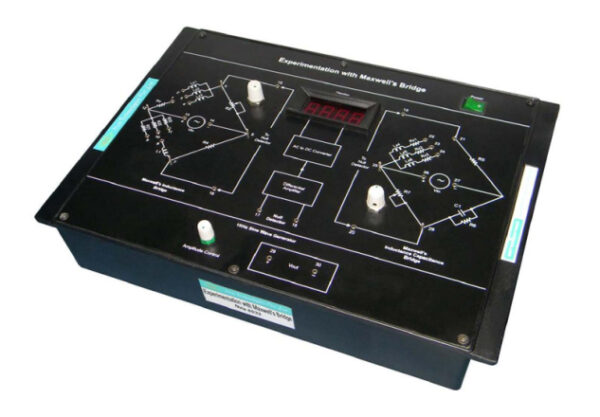

Maxwell`s Bridge trainer is a useful training product for measuring very small values of inductance. It is useful for students to understand the concept and operation of A.C. Bridges.

Maxwell`s bridge can be used to determine value of unknown inductance by comparison with either variable standard self inductance or standard variable capacitance. By setting the null point we can evaluate the unknown inductance value. This product has an on board null detection circuit with differential amplifier, AC to DC convertor and DPM. A 1 KHz sine wave generator is provided with amplitude variation facility.

Category:

Experimentation with Maxwell`s Bridge is an ideal platform to enhance education, training, skills & development amongs our young minds.

Product Features

  • Illustration of both Maxwell`s inductance bridge and
  • Maxwell`s inductance-capacitance bridge on a single board
  • Inbuilt 1 KHz sine wave generator with variable amplitude
  • Null detector with DPM
  • Online product tutorial

Technical Specifications
Mains supply : 230 V ±10%, 50 Hz
DC Power supply : +12V, -12V
Sine wave generator
Fixed Frequency : 1KHz ±5%
Amplitude Control Range : Upto 20Vpp
Unknown Inductors : 10 mH, 20mH, 30 mH,
56µH, 24µH, 12µH
DPM : 200mV
Unknown Internal Resistance:470W, 10 , 20 , 30
Dimensions (mm) : W 240 x D 345 x H 110
