Product Description

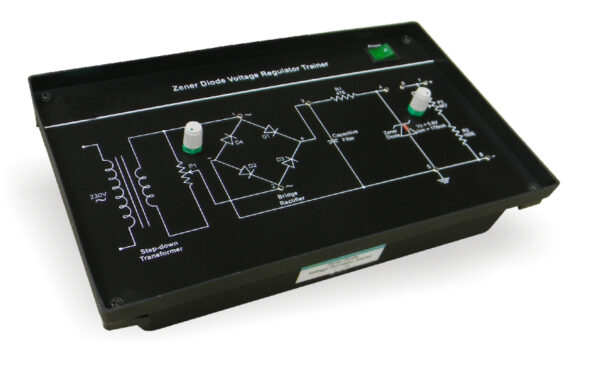

Experimentation with Zener Diode Voltage Regulator has been designed specifically for the study of regulated power supply based on zener diode. As zener diode is generally employed in a standard circuit as a voltage regulator, it is very useful for students to study the operation of zener diode as a voltage regulator with the variation in source voltage and load resistance. This training board is provided with different sections of a regulated power supply i.e. step-down transformer, bridge rectifier, capacitive filter and voltage regulator.

Experimentation with Zener Diode Voltage Regulator is an ideal platform to enhance education, training, skills & development amongs our young minds.

Product Features

• Provided with different sections of a regulated power supply
• Good quality, reliable sockets and test points are provided
• Strongly supported by systematic operating instructions and theoretical details
• A low cost training system
• Online product tutorial

Scope of Learning
