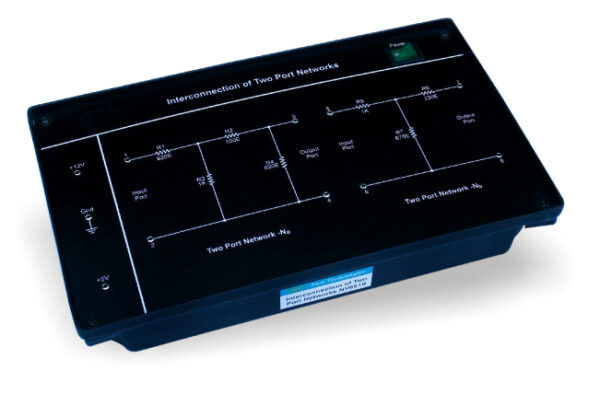

Interconnection of Two Port Networks

Product Description

Interconnection of Two Port Networks, has been designed specifically to demonstrate the importance of Interconnection of Two Port Networks. It can be used as a stand alone unit with inbuilt DC power supply.

With this product, we can calculate various parameters like Z, Y and ABCD under series, parallel and cascade connection of Two Port Networks. It can be performed in a sequential manner and correspondingly it illustrates the phenomenon of Loading Effect. Various scope of learning makes the subject Study complete and interesting.

Interconnection of Two Port Networks is an ideal platform to enhance education, training, skills & development amongs our young minds.

Description

Product Features

Exclusive and Compact design
Inbuilt +12 V and +5 V DC Power Supplies
e-Manual
Two years warranty

Scope of Learning

Study of Cascade Connection of Two Port Networks
Study of Series Connection of Two Port Networks
Study of Parallel Connection of Two Port Networks
Study of Loading Effect with Cascade Connection of Two Port Networks
Study of Loading Effect with Series Connection of Two Port Networks
Study of Loading Effect with Parallel Connection of Two Port Networks
