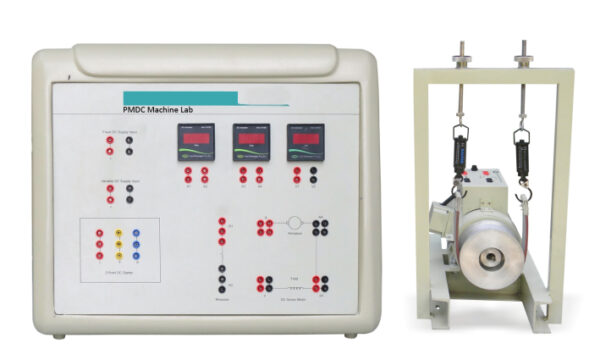

Product Description

A PMDC (Permanent Magnet DC motor) is a kind of DC motor that includes a permanent magnet rather than field winding to form the magnetic field necessary for the DC motor operation. The PMDC motor is one of the most preferred motor for the electric vehicle application due to its traction characteristics such as high starting torque, high power density and good efficiency.



PMDC Machine Lab is an important and exclusively designed product for electrical laboratories. PMDCMachine is an important part of Electrical Engineering Syllabus considering upgraded technologies. This productplays a vital role in letting the students have a basic knowledge about the operating principle of PMDC machine. Itprovides complete learning contents to enhance practical knowledge and explains students the fundamentalconcepts of PMDC Machine.

Category:

This includes experiments such as understanding flowchart of control circuits, operating & load characteristicsof PMDC Machine. All connections and appearance of panel are designed in a manner that students can makeconnections by themselves. All protection circuits are in built so there is almost no chance of fault or danger to user.



Product Features

  • Machine with Mechanical Loading Arrangement
  • Provided with Digital Tachometer
  • Control board consist of high grade FRP material to provide utmost safety to the users
  • Machine with Class “B” Insulation
  • Heavy Duty Base/Channel
  • Brake Drum/Pulley with heat suppression facility
  • Designed by considering all the safety standards
  • Diagrammatic representation for the ease of connections

Technical Specifications
DC Machine
Type : PMDC
Rating : 1HP
Voltage rating : 180V ± 10%
Speed : 1500 RPM ± 10%
Insulation : Class ‘B’
Loading Arrangement : Mechanical
Brake Drum/Pulley : Aluminum cast
Digital Meters used
DC Voltmeter : 300V
DC Ammeter : 10A
Digital Tachometer : 19999 RPM
