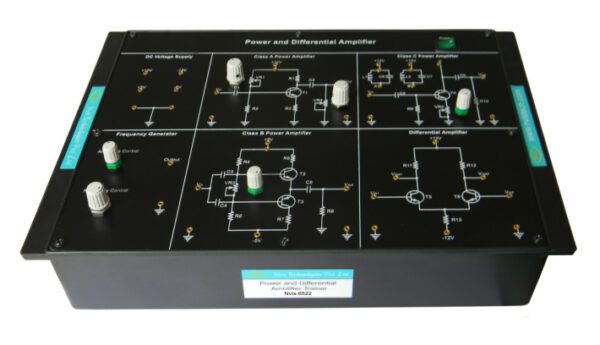

Study of Class AB amplifier can also be done using this kit. Power amplifier, as the name depicts, amplifies the input signal and makes it stronger at the output. Power amplifier can be used as audio amplifier, RF amplifier etc. Differential amplifier amplifies the difference between the two signals.
Power and Differential Amplifier is an ideal platform to enhance education, training, skills & development amongs our young minds.
Product Features
- In-built DC Power Supply
- In-built Sinewave Generator
- Easy Illustration of different types of amplifier
- Online product tutorial
Scope of Learning
- Study of the working principle of class A Amplifier
- Study of the working principle of Class B and Class AB Push-pull Amplifier
- Study of the working principle of class C Amplifier and its operation at tuned frequency
- Study of the working principle of Differential Amplifier
Technical Specifications
Mains supply : 230V ±10%, 50Hz
DC power supply
Fixed : +12V, -12V, +5V, -5V
Frequency
Variable : 10kHz to 100kHz
Amplitude Variable : 0 to 5Vpp
Fuse
Slow Blow : 500mA
Dimensions (mm) : W 345 x D 240 x H 110
Weight : 2kg (approximate)
