Scott Connection Demonstrator

Scott Connection Trainer

Product Description

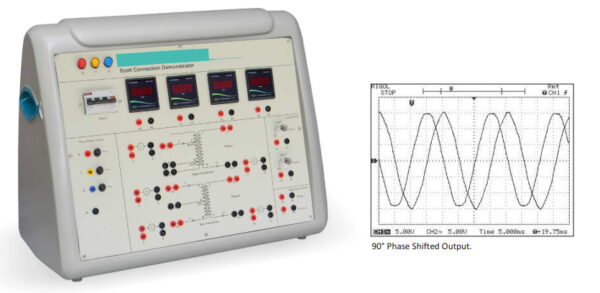

 Scott Connection Demonstrator is a vital training system for the Electrical Laboratories. It provides comprehensive learning of Three Phase to Two Phase Conversion in a very simple manner. It helps to study and analyze the operation of Teaser Transformer and Main Transformer.

Students can per for m stand alone operations and observe the two phase step down waveforms on oscilloscope, which will have 90° phase displacement with each other

Category:

Product Features

  • Main and Teaser Transformer are shown separately
  • Two Phase Step down Outputs for Waveform Observation
  • Control board consist of high grade FRP material to provide utmost safety to the users
  • Equipped with supply indication lamps
  • Provided with bulb holder to use load externally
  • Designed by considering all the safety standards
  • Diagrammatic representation for the ease of connections
  • Exclusive and Attractive Design
  • Online Product Tutorial
Scope of Learning
  • Study of Teaser & Main Transformer
  • Study of Scott Connection (Three Phase to Two Phase Conversion)

Technical Specifications
Mains Supply : Three Phase, 415V AC ±10%, 50Hz
Main Transformer (Center tapped)
Primary Winding : 200-0-200V ±10%, 50Hz
Secondary Winding : 0-230V ±10%, 50Hz
Teaser Transformer
Primary Winding : 0-115.6V (28.9%) ±10%, 50Hz
346.4V (86.6%) ±10%, 50Hz
400V ±10%, 50Hz
Secondary Winding : 0-230V ±10%, 50Hz
Step down Transformers (2 Nos.)
Primary Winding : 0-230V ±10%, 50Hz
Secondary Winding : 0-18V ±10%, 50Hz
Digital Meters Used
AC Voltmeter : 450V (2 nos.)
AC Ammeter : 5A (2 nos.)
