SOP & POS Implementation Trainer

SOP & POS Implementation Trainer

Product Description

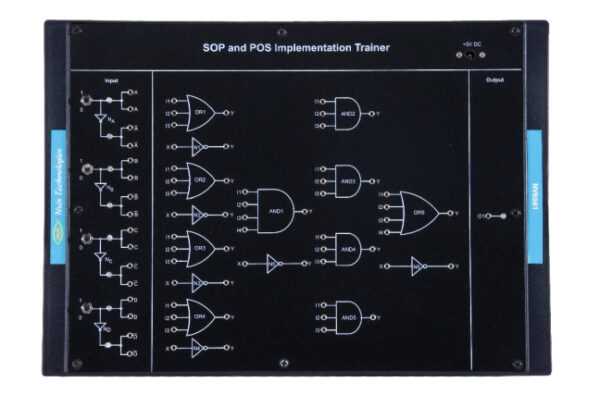

SOP & POS Implementation Trainer is a compact, ready to use digital electronics experiment board. It is useful for students to get a practical insight into the implementation of different canonical forms. The various applications of a canonical forms are representing any Boolean function as a product of sum or sum of product.

Trainer has built in clock source, logic high-low input facility and LEDs for visual indication of input-output states. Besides this, a +5V DC adaptor is also provided for power supply.

Category:

SOP & POS Implementation Trainer is an ideal platform to enhance education, training, skills & development amongs our young minds.

Product Features

  • Stand alone system
  • Easy illustration of different types of canonical forms
  • LEDs for visual indication of input and output logic states
  • SPDT switches for input logic selection
  • Learning Material CD
Scope of Learning
  • Study of boolean function in different canonical forms.
  • Study of Quine Mclusky method and realize its NOR-OR implementation.

Technical Specifications
DC Power Supply : +5V DC
Logic levels
+5V : High (Logic 1)
0V : Low (Logic 0)
LED Indication : LED will be ON for logic
high or ‘1’ state and will
be OFF for logic low or
‘0’state
Dimensions (mm) : W 260 x D 355 x H 125
