Three Phase Induction Motor Lab

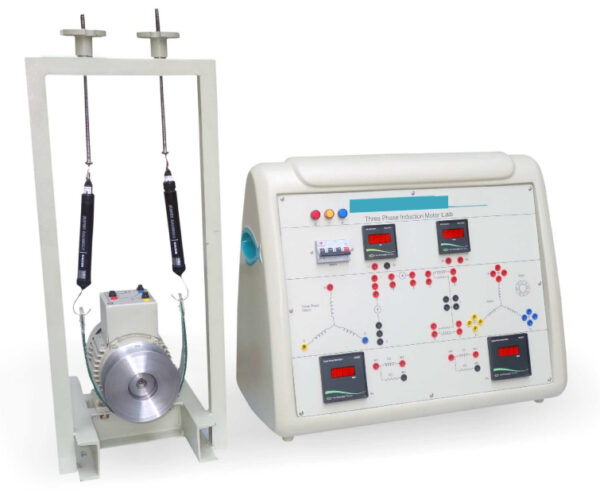

Three Phase Induction Motor Trainer

Product Description

Three Phase Induction Motor Lab is an adaptable training system for the Electrical laboratories. The product helps you to get fully acquainted with the basic concepts and functioning of a Three Phase squirrel cage Induction Motor. The trainer practically expertises you in exercises like Running and Reversing, No Load T est, Block Rotor Test, Slip Measurement, Load Test etc. The vast scope of learning makes the subject completely understandable.

Category:

Product Features

  • Machine with Mechanical Loading Arrangement
  • Provided with Digital Tachometer
  • Control board consist of high grade FRP material to provide utmost safety to the users
  • Machine with Class “B” Insulation
  • Heavy Duty Base/Channel
  • Brake-Drum/Pulley with heat suppression facility
  • Equipped with supply indication lamps
  • Designed by considering all the safety standards
  • Diagrammatic representation for the ease of connections
  • Exclusive and Compact Design
  • Product Tutorial (CD)
Scope of Learning
  • Study of Running and Reversing of Three Phase Induction Motor
  • Study of No Load Test performed in a Three Phase Induction Motor
  • Study of Block Rotor Test performed in a Three Phase Induction Motor
  • Measurement of Slip in a Three Phase Induction Motor
  • Study of Speed-Torque characteristics in a Three Phase Induction Motor

Technical Specifications
Mains Supply : Three Phase, 415V ±10%, 50Hz
Three Phase Induction Motor
Type : Squirrel Cage
Rating : 1HP (Also available with 2 HP and 3 HP)
Voltage Rating : 415V
Speed : 1440 RPM ±5%
Insulation : Class ‘B’
Loading arrangement : Mechanical
Brake Drum/Pulley : Aluminum Casted
Digital Meters used
Wattmeter : 1500W (2 nos.)
AC Voltmeter : 450V
AC Ammeter : 5A
MCB (TPN) : 10A
Digital Tachometer : 20,000 RPM
Three Phase Variac, 10A
