Product Description

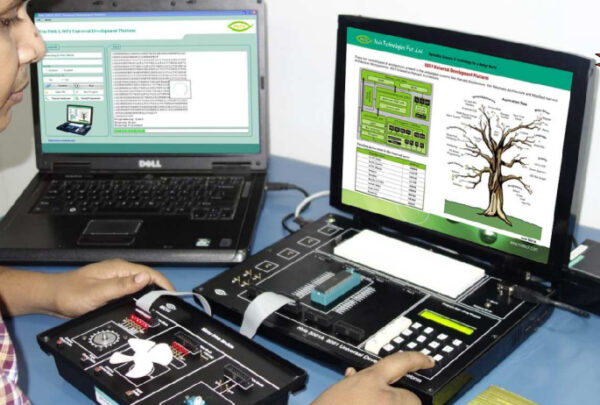

TechBook 5001A 8051 Universal Development Platform is a full-featured development system for 8051 microcontrollers. It is an ideal platform to implement and test the designs both for the beginners and the experts. The Nvis 5001A comes with 20 Keys Hex keypad with 16×2 LCD for user programming mode.

5001A 8051 Universal Development Platform also supports PC-based programming for large size program code. Using Nvis 5001A, a range of projects in various domains like telecommunication, robotics, consumer electronics, etc can be made.Nvis 5001A gives designers a quick start to develop code on a controller with on-board programmer and on board breadboard facility.

Category:

The flexibility of connectors allows a user to make external connections. On board breadboard allows them to make their own circuits and perform any experiment they desire.

5001A, 8051 Universal Development Platform is an ideal platform to enhance education, training, skills & development among our young minds.

Product Features
  • Core 8051 MCU clocked at 11.0592 MHz.
  • User can enter op code using on board 20 keys Hex keypad
  • For large program user can use on board PC based USB Programmer.
  • On board LCD for both programming mode and run mode.
  • Every pin is marked in order to make work easier
  • User can write assembly codes in PC software and run on Nvis 5001A
  • PC Programmer mode also supports other devices like AT89C51/52/55, AT89S51/52/53 , AT89S8252
  • Input / Output & test points provided on board
  • Self contained development board with on board DC Power
  • Supply plug in modules and prototyping area
  • On board breadboard for self circuit design
  • CD with sample project code in assembly and C, Programmer software & useful documents
Scope of Learning
  • Decimal Addition of two numbers.
  • Hexadecimal Addition of two numbers.
  • Hexadecimal Multiplication of two numbers.
  • Hexadecimal Division of two numbers.
  • Hexadecimal Subtraction of two numbers.
  • Logical Operation AND, OR, XOR, NOR, NAND, and NOT.
  • Factorial calculation
  • Timer/Interrupt example.
  • Square wave generation on port
  • Ascending and descending order.
  • Fibonacci series
  • LCM calculation
  • HCF calculation
  • Multiplication by shifting
  • Multiplication by adding
  • Square root calculation of a byte.
  • Square calculation of a byte
  • 8 bit Array addition
  • Flashing “Nvis 5001A” on LCD.
  • Split bytes into two nibbles and display on LCD
  • Program to find even or odd of a byte Interface various external MCXX series modules
