Youngs Modulus Setup

Youngs Modulus Setup

Product Description

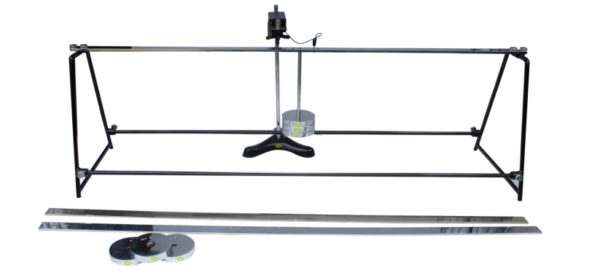

Young`s Modulus Setup is a complete system used to determine Young`s Modulus of Elasticity of materials. When a metal wire is stretched beyond its elastic limit then its cross section is reduced i.e. its structure is changed internally. These changes increase with repeated drawings. The hardness and elasticity of the material are profoundly affected. Setup is used to investigate the change in length of a sample under a varying tension.

Category:

Young`s Modulus Setup is an ideal platform to enhance education, training, skills & development amongs our young minds.

Product Features

  • Precise measurement by Spherometer
  • Self-contained and easy to operate
  • Buzzer indicator
  • Samples – Aluminum, Brass and Iron
  • A complete setup with stand, weights and different samples
  • Online product tutorial
Scope of Learning
  • Determination of Young’s Modulus of Elasticity of the given samples by bending

Technical Specifications

Material : Iron
Length : 100cm
Breadth : 2.5cm
Depth : 0.6cm
Sample 2
Material : Brass
Length : 100cm
Breadth : 2.6cm
Depth : 0.5cm
Sample 3
Material : Aluminum
Length : 100cm
Breadth : 2.55cm
Depth : 0.5cm
Weight : 500g (6 Nos.)
Spherometer
Main scale : 0-30mm
Circular Scale : 100 divisions
Least Count : 0.01mm
DC Power Supply : 12V
Mains Supply : 230V ±10%, 50Hz
